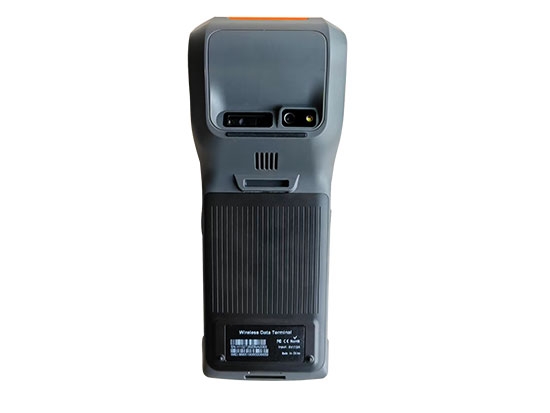

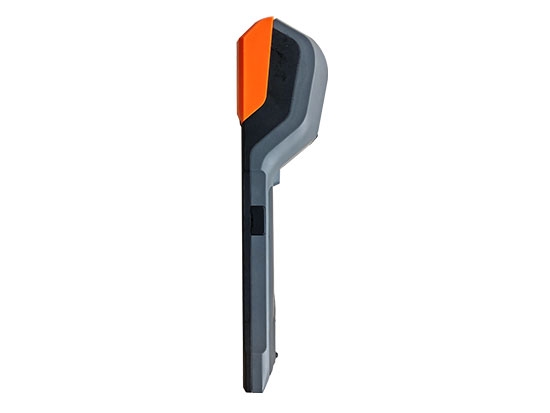

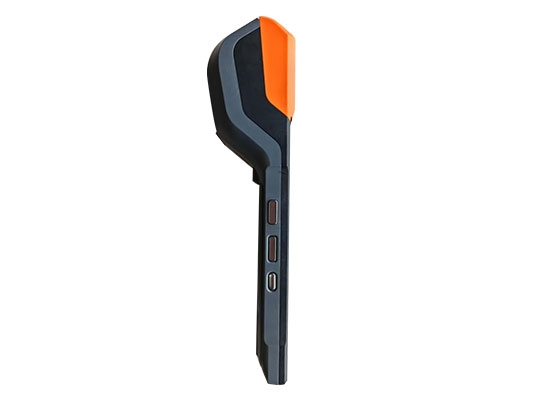

The new i2 smart handheld data terminal has been re-launched. It utilizes powerful data collection features that can be adapted to a variety of enviro
● Business Scenario Generalists
● Octa-core 2.0GHz Processor and Android 13 OS
● Built-in 58mm Thermal Printer with 80mm/s High Speed
● Interfaces are designed with Rubber Plugs to Prevent Water and Oil
● 7.7V/3000mAh Removable Lithium Polymer Battery
● Built in Professional Scan Engine, PSAM Slot, NFC module
Product Features:
● Business Scenario Generalists
● Octa-core 2.0GHz Processor and Android 13 OS
● Built-in 58mm Thermal Printer with 80mm/s High Speed
● Interfaces are designed with Rubber Plugs to Prevent Water and Oil
● 7.7V/3000mAh Removable Lithium Polymer Battery
● Built in Professional Scan Engine, PSAM Slot, NFC module
Product parameters:
|
Performance Characteristics |
CPU |
Cortex-A53 Octa-core 2.0GHz |
|
OS |
Android 13.0 |
|
|
Memory |
2GB RAM+16GB ROM 3GB RAM+32GB ROM（optional） |
|
|
SIM Card Slot |
1 x Nano SIM Card |
|
|
PSAM Card Slot |
1 x Micro PSAM Card |
|
|
Expansion Storage |
1 x Micro SD Card (up to 64GB) |
|
|
Physical Characteristics |
Display |
5.5”HD+, IPS 720×1440 Industrial grade Capacitive Multi-Touch |
|
Battery |
Removable Lithium Battery, 7.7V/3000mAh |
|
|
Dimensions |
157.8×75.5×17.3mm |
|
|
Weight |
345g (with battery) |
|
|
Ports |
1 x Type C，USB 2.0，Support OTG With Rubber Plugs |
|
|
Keys |
1×Power Key，1×Volume +/Scan Key，1×Volume - Key |
|
|
Audio |
Speaker，Microphone |
|
|
Printer |
Built-in 58mm Thermal Printer Print Speed: 80mm/s Paper Roll: Φ40mm |
|
|
Data Capture |
Scan Engine |
1D and 2D Barcodes Reader (optional) Newland CM30 |
|
Camera |
Rear 5MP AF Camera，With Flash LED, Support 1D/2D |
|
|
NFC |
Support ISO15693, ISO14443A/B, Mifare card, Felica card |
|
|
Network Connection |
Wireless WAN |
4G:B38/B39/B40/B41/B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B 3G:B1/B2/B4/B5/B8 2G: 850/900/1800/1900 |
|
Wireless LAN |
2.4GHz & 5GHz dual-band Wi-Fi, support 802.11r fast roaming IEEE 802.11 a/b/g/n |
|
|
Wireless PAN |
BT5.3 + BR/EDR + BLE |
|
|
GPS |
GPS L1, GLONASS, Beidou, Galileo |
|
|
User Environment |
Operating Temp. |
-10℃ ～+50℃ |
|
Storage Temp. |
-20℃ ~ +60℃ |
|
|
Charging Temp. |
0℃ ~ +45℃ |
|
|
Humidity |
5%-95% RH (No condensation) |
|
|
Accessories |
Standard |
Power Adaptor×1, USB Cable×1, Battery×1 |
|
Optional |
Hand strap, Protective Case, Protector Film |
